Poly ISO Tapered with Coated Glass Facer

NEW-PRODUCT

Poly ISO Tapered with Coated Glass Facer

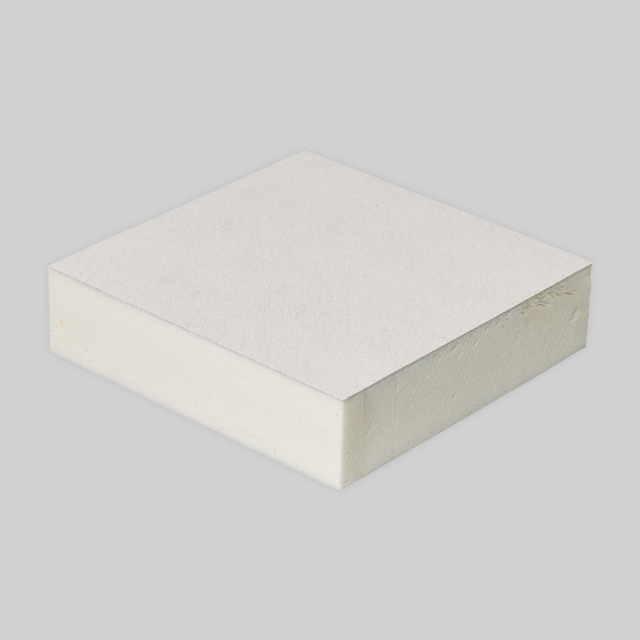

MuleHide Poly ISO Tapered Insulations consist of a closed-cell polyisocyanurate foam core, manufactured on-line to a high-performance coated glass facer on both sides (CGF). These insulations are compatible with MuleHide membranes and accessories and are available in 20 and 25 psi densities. MuleHide Poly ISO with Coated Glass Facer can be used in ballasted, mechanically attached, and fully adhered single-ply roofing systems. The boards may be installed over approved decks and substrates in new construction, tear-offs, and recover (retrofit) projects. They are rated for use in UL Class A and FM Class 1 assemblies.

System

EPDM
TPO
PVC
ModBit
  • Poly ISO 1 - DWD or Poly ISO 2 Coated Glass Facer products must be used with system warranties.
  • Available in 4'x4' only.
  • Available in 20 or 25 PSI compressive strength.
  • Poly ISO 1 - DWD with coated glass facer (1" thickness or greater) achieves a UL Class A combustible deck assembly rating without the use of a fire rated slip sheet or gypsum cover board.
  • Minimum thickness of 1/2".
  • Meets UL Standards
  • Meets FM Standards
  • Meets Miami-Dade-County Standards
  • Meets Florida-Building Standards

Documents

PDS - Poly ISO 1-DWD (Coated Glass Facer)
View
PDS - Poly ISO 2 CG - Flat & Tapered
View
SDS Poly ISO 1 and HD-1 Roof Insulation
View
SDS Poly ISO 2 Roof Insulation
View

Poly ISO Coated Glass Facer Cross Reference
View

Details

ROOF DRAIN WITH SUMP FOR EPDM
ROOF DRAIN WITH TAPERED INSULATION FOR EPDM

2 inch OR THICKER INSULATION ATTACHMENT - 8 FASTENERS PER 4ft X 8ft BOARD
FM - 12 FIELD FASTENERS PER 4ft X 8ft BOARD PATTERN LAYOUT
FM - 16 FIELD FASTENERS PER 4ft X 8ft BOARD PATTERN LAYOUT
FM - 17 FIELD FASTENERS PER 4ft X 8ft BOARD PATTERN LAYOUT
FM - 8 FIELD FASTENERS PER 4ft X 8ft BOARD PATTERN LAYOUT
HELIX FOAM ADHESIVE 4" RIBBON PATTERN
HELIX MAX FOAM ADHESIVE 12" RIBBON PATTERN
HELIX MAX FOAM ADHESIVE 4" RIBBON PATTERN
HELIX MAX FOAM ADHESIVE 6" RIBBON PATTERN
INSULATION ATTACHMENT - 12 FASTENERS PER 4ft X 8ft IN FIELD
INSULATION ATTACHMENT - 16 FASTENERS PER 4ft X 8ft IN FIELD
INSULATION ATTACHMENT PATTERNS FOR MECHANICALLY ATTACHED SYSTEMS
INSULATION ATTACHMENT WITH MODBIT - 16 FIELD FASTENERS PER 4FT X 8FT BOARD - OPTION 1
INSULATION ATTACHMENT WITH MODBIT - 17 FIELD FASTENERS PER 4FT X 8FT BOARD- OPTION 5
INSULATION ATTACHMENT WITH MODBIT - 24 FIELD FASTENERS PER 4FT X 8FT BOARD - OPTION 3
INSULATION ATTACHMENT WITH MODBIT - 28 FIELD FASTENERS PER 4FT X 8FT BOARD - OPTION 4
INSULATION ATTACHMENT WITH MODBIT - 8 FIELD FASTENERS PER 4FT X 8FT BOARD - OPTION 2
